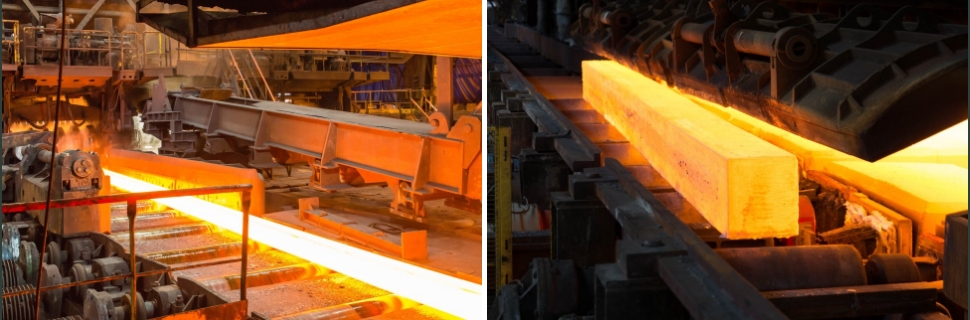

Quenching of steel refers to a process in which heated steel is cooled at an appropriate rate, generally for the purpose of hardening the material.

Steel containing a suitable amount of carbon is heated to the austenite phase and then rapidly cooled to form a martensitic structure. The oil used for this rapid cooling is referred to as quenching oil, and oils used for other heat treatment processes such as tempering or annealing are collectively referred to as heat treatment oils.

1. Cooling Mechanism

As standardized in KS M 2170, most heat treatment oils are mineral oil-based. In general, “heat treatment oil” primarily refers to quenching oil.

The goal of quenching is to harden the steel without causing cracks or distortion. Cracks or deformation during quenching can occur due to the steel’s hardenability, shape, dimensions, residual stresses from prior processes, and the cooling capacity of the quenchant. The hardening of steel is determined by its hardenability, size, and the cooling performance of the quenchant.

Therefore, a key to successful quenching is to cool rapidly at first and slowly later. Water quenches quickly but has a higher risk of cracking or warping, whereas mineral oil quenches more slowly but results in less distortion.

The cooling performance of a liquid is generally lower when its vapor pressure, boiling point, surface tension, and viscosity are high, and greater when its latent heat of vaporization, specific heat, and thermal conductivity are high. Within the same type of mineral oil, heavier oil fractions have higher molecular weight and boiling point, lower vapor pressure, and higher flash point and viscosity. Consequently, both the characteristic temperature and onset temperature of convection stage also increase.

During rapid cooling using mineral oil-based heat treatment oils, the cooling process generally occurs in three stages:

1. Vapor Blanket Stage – Characterized by low cooling rate
2. Boiling Stage – Characterized by rapid cooling
3. Convection Stage

The characteristic temperature is defined as the temperature at which the vapor blanket collapses and nucleate boiling begins. The convection onset temperature is the point where cooling begins solely by convection. These two temperatures are crucial in governing the cooling behavior of heat treatment oils.

The higher the characteristic temperature and the lower the convection onset temperature, the greater the cooling performance. However, representing cooling performance solely by cooling curves is problematic, so the Grossman H-value is generally used to quantitatively express the cooling capacity.

2. Temperature Effects

The cooling performance of a quenchant changes with temperature. Water, for example, experiences a sharp drop in cooling efficiency as its temperature increases due to the easier formation and prolonged duration of the vapor blanket stage.

In the case of quenching oil, as the oil temperature increases, viscosity decreases, leading to an increase in characteristic temperature. Cooling performance reaches its peak at around 80°C, but decreases if the oil temperature rises further.

Vegetable oils such as rapeseed oil, soybean oil, peanut oil, and whale oil generally have higher characteristic temperatures and relatively good cooling performance. However, due to their high cost and rapid degradation, mineral oils are predominantly used today.

As the oil temperature rises, the H-value also increases and reaches its maximum between 60–80°C. Compared to water, the influence of liquid temperature on quenching oil is less significant, and 60–100°C is considered the optimal range for practical use.

For marquenching (hot bath quenching), where oil is used at around 200°C, the cooling performance is intentionally reduced. In this case, light oil with low flammability risk is recommended. Among oils with similar flash points, naphthenic oils provide better cooling performance than paraffinic oils. However, in general, mineral oils have inferior cooling capacity compared to vegetable oils. To improve performance, methods such as reducing surface tension or inhibiting vaporization are under investigation.

While enhancing cooling performance is relatively simple, it often leads to shorter oil lifespan. Therefore, it’s generally better to use long-life mineral oils and supplement any cooling deficiencies with agitation. However, this can lead to uneven quenching and distortion due to different cooling rates on various parts of the component.

3. Effect of Agitation

Agitation during quenching significantly influences cooling performance.

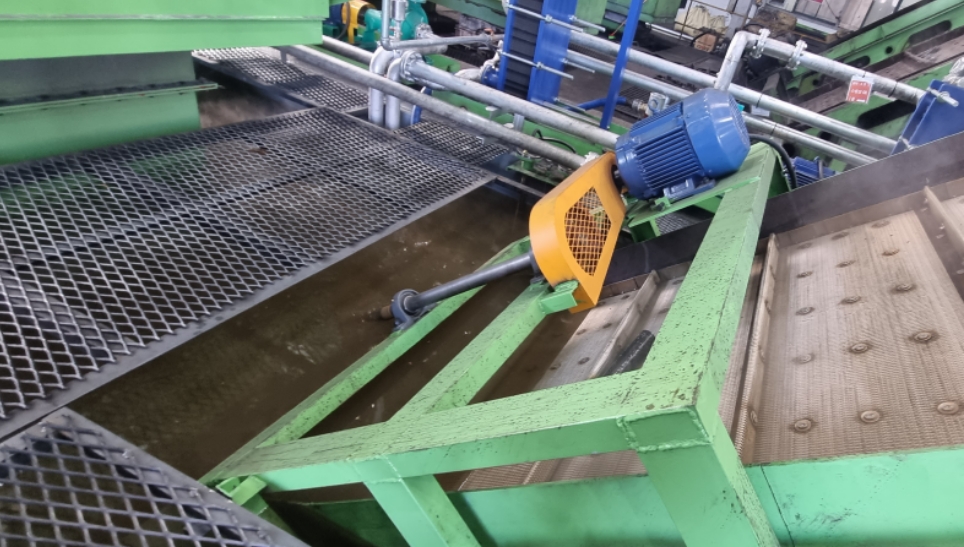

It is standard practice in heat treatment facilities to equip quenching oil tanks with agitation devices. These devices, or manual shaking of the parts in the oil, help achieve appropriate cooling rates for the parts.

Agitation disrupts the formation of the vapor blanket, shortening that stage and enhancing the boiling and convection phases, leading to improved overall cooling.

When agitation begins in a static bath, cooling efficiency rises sharply at first but then levels off or even decreases with excessive flow rates. On cooling curves, strong agitation can make the three cooling stages less distinct.

4. Non-Aqueous Heat Treatment Oils

Paraffinic base oils generally have higher characteristic temperatures than naphthenic base oils. Adding bright stock improves cooling performance. Mixing low-viscosity and high-viscosity mineral oils results in intermediate values for both characteristic and convection onset temperatures.

Cooling enhancers include polyisobutylene, methacrylate polymers, ashless dispersants, terpene polymer resins, petroleum sulfonates, oxidized asphalt, and coal tar. Among these, polyisobutylene, petroleum heavy fractions, and sulfonates are commonly used. These are all high molecular weight substances that are difficult to evaporate, contributing to an increase in characteristic temperature.

However, depending on the additive used, negative effects on stability or brightness may occur, meaning selection cannot be based on cooling enhancement alone. Hence, there are few additives suitable for practical use.

5. Types of Heat Treatment Oils in KS Standards

Type	Use Description
Type 1, No. 1	Quenching oil for materials easy to harden
Type 1, No. 2	Quenching oil for materials difficult to harden
Type 2, No. 1	For marquenching at around 120°C
Type 2, No. 2	For marquenching at around 160°C
Type 3, No. 1	For tempering at oil temperature around 150°C
Type 3, No. 2	For tempering at oil temperature around 200°C

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Water-soluble quenching oils can be classified into two types based on whether they form a film on the surface of the quenched part during the cooling process:

1. Non-Film Forming Type: Does not create a film on the surface during quenching.
2. Film Forming Type: Creates a thin film at lower cooling temperatures (below 300°C).

1. Non-Film Forming Aqueous Solutions

(1) Acidic Solutions

Inorganic acid solutions, such as sulfuric acid and hydrochloric acid, show varying cooling characteristics depending on concentration and temperature.

• For example, a 10% hydrochloric acid solution at 20°C has an H-value of 4.5 in the high-temperature range and 0.2 in the low-temperature range.
• Organic acids such as acetic acid (20%, 20°C) show H-values of 1.5 (high-temp) and 0.35 (low-temp).

(2) Alkaline Solutions

Sodium hydroxide (NaOH) and potassium hydroxide (KOH) are commonly used.

• A 5% NaOH solution at 20°C shows H-values of 10.5 (high-temp) and 0.8 (low-temp).

(3) Salt Solutions (Brine)

Common salts include NaCl and CaCl₂.

• A 10% NaCl solution at 20°C has H-values of 9.0 (high-temp) and 0.65 (low-temp).
• These salt solutions have higher cooling performance than water due to elevated boiling points caused by dissolved salts, which delay vapor formation.

(4) Emulsion-Type Solutions

This includes solutions of soap and water-soluble oils.

• A 0.05% soap solution at 20°C has an H-value of 0.05 at high temps, which increases around 400°C and then drops to 0.65 at lower temps.

(5) Glycol-Based Solutions

These include both polymers and monomers.

• Polyalkylene Glycol (PAG): Also known as polyethylene glycol ether, it has been used industrially since the early 1960s. Special synthesis and blending techniques provide long-term thermal stability and corrosion resistance.
• Polyethylene Glycol (PEG): Obtained by polymerizing ethylene oxide. Due to technical limitations, it hasn’t been widely applied.
• Ethylene Glycol: A colorless liquid with a sweet taste that absorbs moisture and is miscible with water, ethanol, and acetic acid. Upon oxidation, it forms glycolic acid, glyoxal, and oxalic acid. It’s widely used in Tetron production, alkyd resins, antifreeze, pharmaceuticals, and cosmetics.
• Glycerin: Used as a laxative, lubricant, and moisturizer. In combination with other drugs, it’s used in creams, eye drops, and injections for treating frostbite, dry eyes, or for volume reduction during surgery.

2. Film Forming Aqueous Solutions

When using film-forming aqueous solutions for spray cooling, solutes typically decompose or burn at high temperatures and do not adhere to the part’s surface, resulting in cooling performance similar to water.
However, at lower temperatures, the solutes form a film on the surface, slowing the cooling rate.

Typical film-forming solutes include natural substances (e.g., gum arabic, albumin, gelatin, agar, starch) and synthetic polymers (e.g., polyvinyl alcohol [PVA], carboxymethyl cellulose [CMC]).

Characteristics of Water-Soluble Quenching Media

• No fire hazard.
• Enables use of lower-cost steels.
• Environmentally friendly and easy to dispose of.

To fully utilize these advantages, the following performance characteristics are required:

1. Ability to achieve desired cooling performance based on concentration and temperature.
2. Ease of managing cooling performance.
3. Minimal quality change due to degradation.
4. Resistance to spoilage.
5. Ease of wastewater treatment.

Meeting these conditions allows for broader adoption of water-based quenching over oil-based methods, expanding steel selection options.

3. Precautions When Using Water-Soluble Quenching Oils

1. Uniform Cooling: Ensure even and simultaneous cooling across the part to avoid quenching cracks, particularly in the low-temperature range.
2. Safety: Acidic and alkaline solutions can be hazardous. While salt solutions pose less risk, attention should still be paid to the specific solute. Glycol-based solutions (non-film-forming) may have odors but are generally safer. Synthetic film-forming solutions offer good stability, while natural solutions tend to spoil and produce odors.
3. Cooling Management: Cooling performance is greatly affected by solution concentration, fluid concentration, and contact velocity. It’s advisable to keep the cooling liquid temperature below 40°C.

4. Selecting Quenching Oils

Quenching oil must be selected based on various factors:

• Type of steel and its shape, size, required hardness, metal structure, and expected deformation.
• Quenching method: conventional, atmospheric, salt bath, induction, flame, etc.
• Heating method: gas, electric, kerosene, diesel.
• Furnace type: batch, pit, continuous.
• Carburizing method: gas, liquid, solid.
• Steel grade, dimensions, and tempering temperature.
• Oil tank specs: capacity, agitator type and speed, cooling system size.
• Currently used quenching media and any issues with it.

Proper evaluation of these factors is essential for choosing the appropriate heat treatment oil.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

In precision manufacturing, the quality and consistency of your heat treatment process can make or break your final product. At the core of this process is the heat treatment solution, most commonly composed of Polyalkylene Glycol (PAG) — a low-toxicity, biodegradable compound also used in cosmetics.

Unlike traditional oils or additives, PAG is gentle on both equipment and the environment. When diluted below 0.1%, it poses virtually no harm to living organisms and generates minimal biological oxygen demand (BOD), making disposal far safer and more sustainable. For unused solutions, advanced filtering devices like Polymer Separation Devices (PSD) can separate out valuable components while allowing safe water disposal.

However, the story changes once the solution is used. Industrial heat treatment environments introduce various contaminants into the mix — many of which can degrade solution performance, damage equipment, or even skew your quality control metrics.

Let’s break down the key types of contamination and what you can do about them.

Solid Particle Contamination: The Silent Disruptor

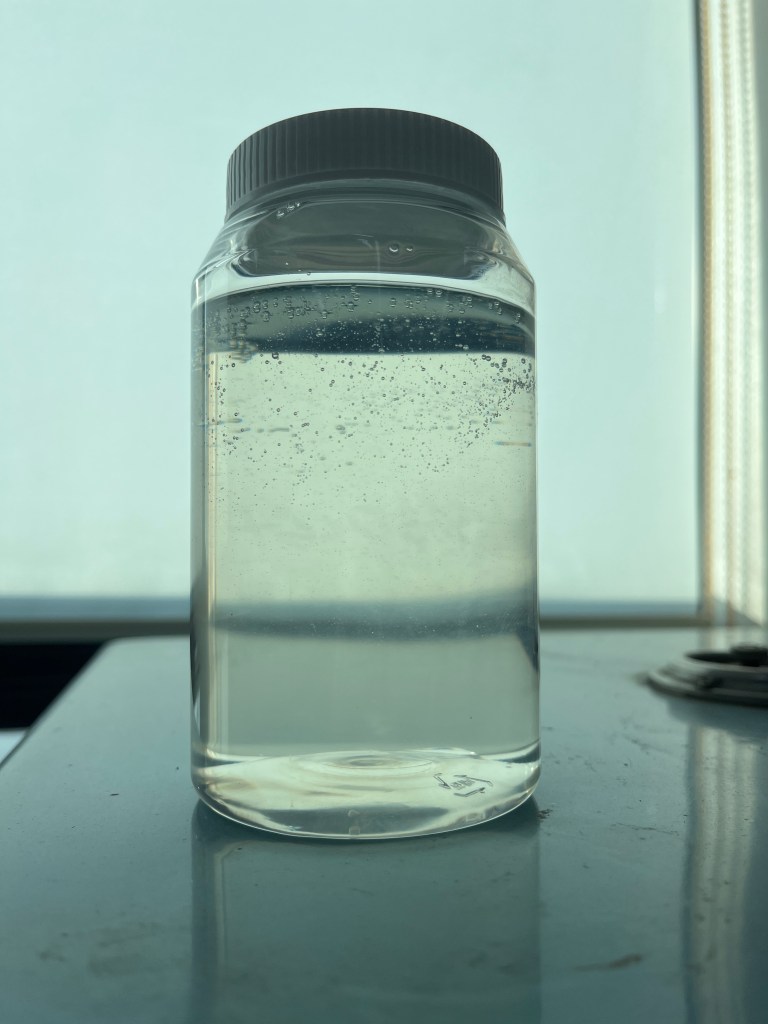

Over time, heat treatment tanks tend to accumulate iron oxide scale, dirt, dust, and machining debris. These floating particles don’t directly affect cooling speed like some salts, but they interfere with adhesion to the PAG film, reduce the solution’s rust-prevention properties, and contribute to equipment wear and breakdowns.

Best Practices: Combine filtration, magnetic separation, or centrifugation methods to effectively remove solids. Using two complementary methods provides better results than relying on just one.

---

Salt Contamination: Invisible but Impactful

Even when using tap water, long-term use of low-grade groundwater can lead to salt accumulation in your system. These salts alter the cooling rate and often result in inaccurate refractometer readings, leading operators to believe the solution is more concentrated than it really is.

Solution: Always cross-check with a viscometer or calibrated concentration meter to maintain precise process control.

---

Mineral Oil Contamination: Cooling and Combustion Risks

Hydraulic oils, quenching oils, and machining lubricants can easily find their way into your heat treatment solution. These oils slow cooling rates, reduce material hardness, and may even ignite on the solution’s surface.

Watch Out For: Tank conversions from oil-based to water-soluble systems can leave residual oil in heat exchangers, which contaminates the solution over time.

---

Microbial Contamination: Warm Weather’s Hidden Threat

In active systems, microorganisms typically don’t survive. But when operations pause — especially in warm environments — oil-contaminated solutions can become breeding grounds for bacteria.

Fortunately, PAG is naturally biodegradable, making it safer and more eco-friendly than petroleum-based alternatives. You can prevent microbial growth through tank aeration or the addition of non-toxic biocides.

---

Degreaser Contamination: A Data Distortion Trap

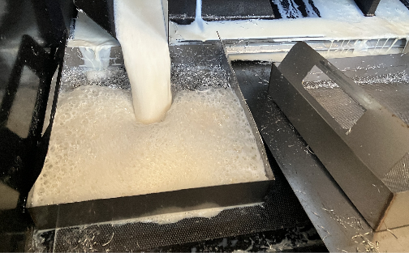

In some workflows, machining occurs before heat treatment, and cutting oils or degreasers can remain on the product. Over time, these build up in the solution, leading to increased refractometer readings — even as the actual PAG concentration drops.

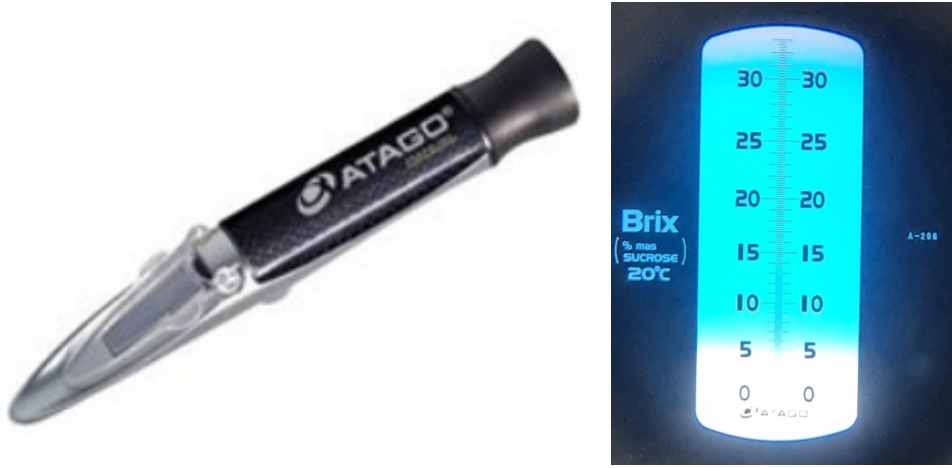

Tip: Don’t rely solely on a refractometer. Always verify readings with a viscometer to ensure your solution concentration is accurate and consistent.

---

Environmentally Safe, Operationally Smart

While PAG-based solutions offer significant environmental and operational advantages, they are still vulnerable to contamination. By proactively managing pollutants — from solids to oils — you can extend the life of your solution, improve part quality, and reduce equipment downtime.

Ready to optimize your heat treatment system?

Connect with our technical team for customized filtration and solution monitoring strategies that keep your operations running clean and compliant.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

What is Heat Treatment Oil?

Heat treatment oil is a specialized fluid used to control the cooling rate of steel heated to high temperatures. Its primary purpose is to prevent cracks and achieve a uniform micro structure during the heat treatment process.

Heat treatment typically involves heating steel to temperatures close to or above 1,000°C. If rapidly cooled without proper control, the steel can develop cracks. By carefully managing the cooling process using heat treatment oil and optimal conditions, manufacturers can produce strong, crack-resistant steel components.

Among various heat treatment oils, quenching oil is commonly used to rapidly cool austenitized steel to form a martensitic structure. In general, the term “heat treatment oil” encompasses all oils used in quenching, tempering, annealing, and other thermal processes. Simply put, heat treatment oil acts as a high-performance lubricant designed to harden and enhance the properties of steel components.

Let’s take a closer look at the two main categories of heat treatment fluids—water-soluble coolants and non-water-soluble oils—and their distinct characteristics.

---

Water-Soluble Heat Treatment Coolants

Although often referred to as “water-soluble heat treatment oils,” the correct term is heat treatment coolant. These coolants pose a lower fire risk, are more environmentally friendly, and are easier to clean post-process. However, they must meet strict performance criteria:

1. Proper Cooling Performance
   The coolant must deliver optimal cooling performance based on concentration and temperature settings.
2. Ease of Cooling Performance Control
   It should be easy to monitor and adjust the cooling characteristics during use.
3. Thermal Stability
   It must resist degradation and maintain consistent quality over time.
4. Non-Putrefactive and Wastewater-Friendly
   The coolant should not decay or rot and must be easy to dispose of with minimal environmental impact.

When these conditions are met, water-based coolants can often outperform oils in versatility and offer a broader range of steel grades compatibility.

There are two types of water-based coolants:

• Non-film-forming
• Film-forming

This distinction is based on whether a protective film is formed on the surface of the quenched part.

Best Practices When Using Heat Treatment Coolants:

• Uniform cooling must occur simultaneously across the entire part.
• Temperature distribution should be consistent over time.
• The cooling process should remain gradual, especially in lower temperature ranges.

---

Non-Water-Soluble Heat Treatment Oils (Quenching Oils)

Often referred to as quenching oils, these fluids are more cost-effective and do not rot like water-based coolants. However, they come with increased fire risk, environmental concerns, and more complex post-treatment requirements.

When selecting a heat treatment oil, it’s crucial to go beyond just the process requirements. Consider the following:

1. Type of heat treatment (quenching, atmospheric, salt bath, induction, flame, etc.)
2. Heating method (gas, electric, kerosene, diesel, etc.)
3. Equipment style (batch, pit, continuous)
4. Carburizing method (gas, liquid, solid)
5. Material, size, and tempering temperature of the steel
6. Tank capacity, agitation system, and cooling device specifications
7. Currently used fluids and existing issues

Heat treatment oils are classified according to KS (Korean Industrial Standards) and are commonly referred to by their intended use and treatment temperature: Cold, Semi-Hot, Hot, and Tempering Oils. Usage methods often remain proprietary to each company.

---

Proper Oil Maintenance is Critical

Once selected, proper management of the heat treatment oil is essential. Regular monitoring of properties like flash point, acid value, insolubles, residual carbon, and moisture content is crucial.

Unlike general hydraulic, gear, or cutting oils, heat treatment oils require specialized handling. That’s why partnering with a reliable manufacturer is key—but not always easy.

---

Why Dyna?

We’ve been a trusted supplier of industrial lubricants for over 30 years. We hold patents for water-soluble heat treatment coolants and serve a wide range of major corporations and small-to-medium-sized businesses across Korea.

If you’re considering switching your current heat treatment oil or coolant, feel free to reach out. We’ll analyze your needs and provide top-quality solutions at competitive prices.

For any inquiries about industrial lubricants, contact Dyna, your reliable partner in lubrication technology.
