Technical Spotlight: Precision Stamping Oil for Ultra-Thin Components

From smartphones and wearables to semiconductors for electric vehicles (EVs), electronic components are becoming smaller and thinner every day. Today’s manufacturing floors require extreme precision, capable of punching ultra-thin plates (under 0.1mm) at speeds of thousands of strokes per minute.

In these ultra-precision processes, the “invisible hero” that determines productivity and reduces defect rates is Precision Punching Oil. Here are the core technical reasons why you should choose specialized lubricants designed specifically for electronic components.

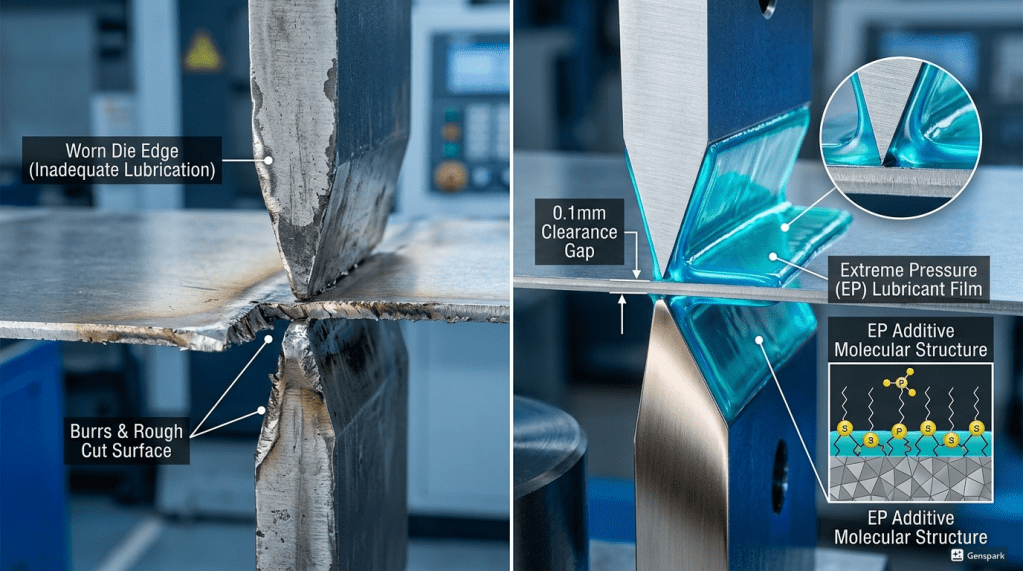

1. Oil Film Control Technology: Breaking the 0.1mm Limit

In ultra-thin stamping, the clearance between the die and the material is extremely narrow. Conventional punching oils often fail to withstand the intense pressure and frictional heat generated during high-speed operations, leading to oil film rupture.

• The Technical Core: It is essential to maintain low viscosity while simultaneously forming a powerful Extreme Pressure (EP) Film that adheres strongly to the metal surface.
• Expected Benefits: Maintaining a stable oil film drastically reduces wear on the mold’s cutting edge. This results in smooth cross-sections and minimizes burr formation, ensuring superior part quality.

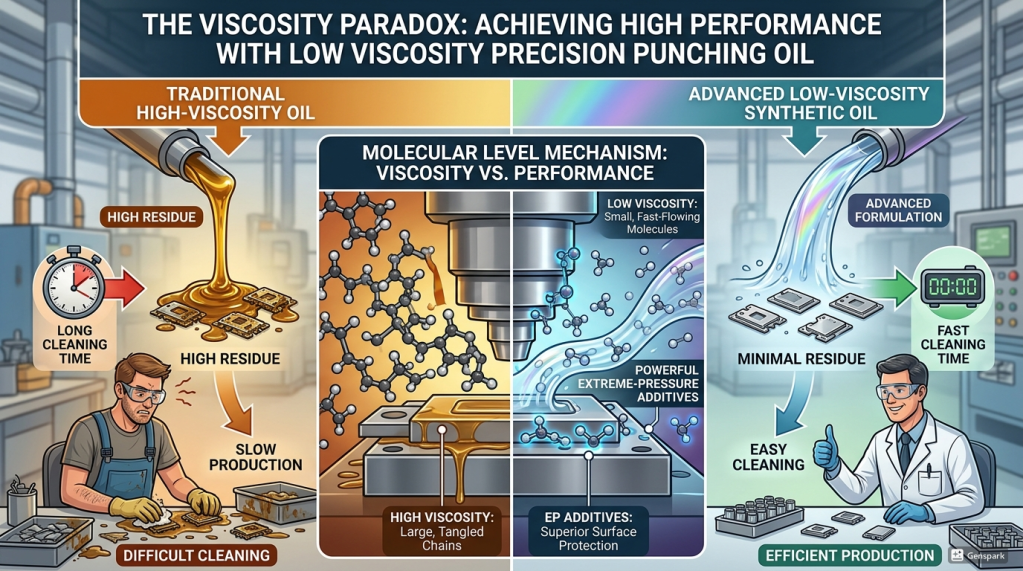

2. A Paradoxical Blend: Low Viscosity and High Performance

Selecting the right viscosity is one of the most challenging aspects of electronic component manufacturing.

• Why Low Viscosity? If excessive oil residue remains after processing, tiny components tend to stick together, or the subsequent cleaning process becomes unnecessarily long. Therefore, low-viscosity lubricants that flow as light as water are highly preferred.
• The Solution: Generally, lower viscosity leads to decreased lubricity. However, high-performance precision punching oils utilize specialized synthetic base oils to minimize viscosity while maximizing lubrication. This ensures consistent quality even in ultra-high-speed press operations.

3. Ensuring Electrical Integrity: Conductivity and Anti-Tarnish

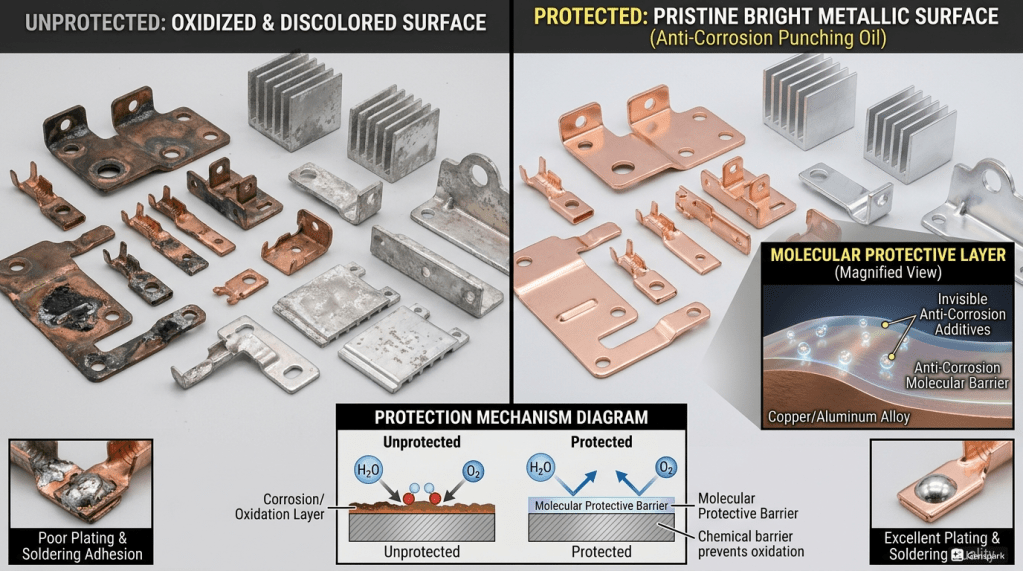

The primary materials for electronic parts—such as copper alloys and aluminum—are extremely sensitive to their environment. If the punching oil contains incompatible chemical agents, the material surface may appear fine initially but can oxidize or turn black over time.

• Non-Staining Additives: Our precision punching oils include non-ferrous corrosion inhibitors specifically tailored to material properties.
• The Impact: By preventing surface degradation, these additives improve the adhesion and reliability of post-processing steps such as plating or soldering, ultimately securing the long-term electrical reliability of the final product.

마지막 세션까지 전문적인 기술 용어와 마케팅 감각을 살려 영문으로 번역해 드립니다. 특히 ‘휘발성 유제’를 ‘Vanishing Oil’ 또는 **’Evaporative Lubricant’**로 표현하여 산업 현장에서의 가독성을 높였습니다.

---

4. Process Innovation: ‘Vanishing Oils’ for Wash-Free Manufacturing

Recently, “process simplification” and “eco-friendliness” have become the biggest buzzwords in manufacturing. While many facilities still operate large-scale cleaning equipment to remove residual oil, high-performance evaporative (vanishing) punching oils change the game.

• The Wash-Free Solution: These lubricants evaporate cleanly into the air after processing, leaving virtually no residue behind. This serves as a powerful competitive edge, allowing manufacturers to skip or significantly reduce the cleaning stage, thereby cutting electricity bills, solvent costs, and waste disposal expenses all at once.

---

💡 Conclusion: Precision Punching Oil as a Core Strategy

In the world of ultra-thin electronic component manufacturing, precision punching oil is more than just a lubricant—it is a strategic asset that hits two birds with one stone: “Mold Protection” and “Process Innovation.”

In extreme processes involving materials under 0.1mm, micro-frictional heat and oil film rupture are the primary culprits that shorten mold life and degrade electrical reliability. High-performance precision oils prevent these issues at the source with a robust Extreme Pressure (EP) film, maintaining flawless quality.

Furthermore, adopting volatile precision lubricants eliminates cumbersome cleaning steps, drastically reducing manufacturing costs (utilities, waste management) and resolving production bottlenecks.

As electronic components continue to shrink and processing technologies advance, the role of punching oil—an essential auxiliary material—becomes increasingly vital.

Are you looking for the next generation of precision punching oil?

Contact us today. We will provide the optimal solution tailored specifically to your manufacturing process.
