In the past, “low cost” was considered the ultimate virtue for EDM fluids on the mold machining floor. It was common practice to purchase them in bulk by the drum, use them until the oil turned pitch black and emitted a foul odor, and then dispose of them to refill with fresh oil. This role was predominantly filled by “Mineral Oil” products, which are refined from crude oil.

However, the landscape has completely transformed with the advent of the ultra-precision, high-end machining era. Today, a mere 0.001mm margin of error is unacceptable for applications like ultra-thin smartphone components, medical devices, and secondary battery molds. To accelerate machining speeds while achieving a mirror-like surface finish, forward-thinking manufacturing companies are staying a step ahead by completely transitioning to “Synthetic EDM Fluids.”

Regarded not simply as an oil, but as the culmination of advanced chemical technology, do synthetic EDM fluids truly offer benefits powerful enough to offset their higher initial purchase costs?

Here are 3 crucial reasons every field engineer and executive must know.

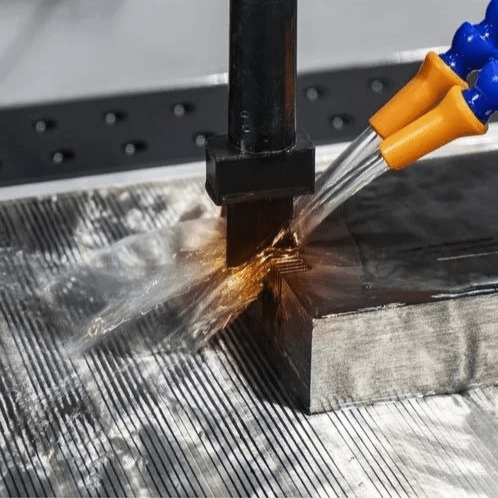

To achieve this, the fluid must have a water-like, low viscosity. However, mineral oils suffer from a fatal contradiction: lowering their viscosity drastically drops their flash point (the temperature at which they ignite), which severely increases the risk of fire.

Synthetic EDM fluids are engineered through a highly advanced chemical synthesis process that completely eliminates impurities and uniformly restructures their molecular makeup.

• They achieve an ultra-low viscosity capable of instantly flushing away machined chips, while
• Simultaneously maintaining a high flash point (typically above 80°C) to keep the factory and operators safe from fire hazards.

Thanks to this perfect balance, machining speeds (cycle times) increase dramatically, and defect rates caused by secondary electrical discharges plummet.

2. Overwhelming Oxidation Stability: More Than Doubling the Lifespan of Oil and Filters

Here is the English translation, maintaining the professional, engaging, and highly readable tone of a technical blog:

Inside an EDM machine, electrical sparks reaching thousands of degrees continuously erupt. Conventional mineral oils cannot withstand this extreme heat; their molecular structure breaks down, leading to rapid degradation. The oil turning black, becoming sticky, and filling with floating sludge are the exact evidence of this.

On the other hand, synthetic fluids, with their tightly knit and stable molecular structure, boast exceptional Oxidation Stability.

• Even under severe thermal stress, they do not lose their inherent properties and maintain a crystal-clear state for a long period.
• They possess excellent settling properties that quickly sink sludge to the bottom, drastically reducing the clogging of expensive filtration filters.

As a result, the fluid replacement cycle and filter purchasing costs are significantly reduced, making it far more economical from a long-term TCO (Total Cost of Ownership) perspective.

3. ESG Management and Operator Protection: An Odor-Free, Pleasant Work Environment

The nauseating oil stench typical of EDM rooms and the skin rashes (dermatitis) caused by contact are among the biggest reasons field operators avoid the EDM process. This is primarily due to aromatic compounds—such as benzene and toluene—and various impurities lingering in mineral oils.

Synthetic EDM fluids, however, are high-purity, environmentally friendly fluids that contain no harmful carcinogens or irritating compounds.

• They generate virtually no headache-inducing odors.
• The volume of harmful mist and smoke emitted during high-temperature machining is remarkably low.

This goes far beyond simply providing a pleasant workspace; it is the most definitive investment you can make to protect the health of your on-site operators and ultimately boost productivity.

💡 An invisible oil film determines the yield of ultra-precision machining.

To break through the limits of ultra-precision mold machining, elevating the standard of your “EDM fluid”—the very stage where machining happens—is just as crucial as the machine’s own performance. Even if the initial adoption cost is slightly higher than that of mineral oils, the combined benefits of accelerated machining speeds, reduced electrode wear, and slashed costs for waste oil disposal and filter replacements guarantee a definitive ROI (Return on Investment) that will more than pay for itself within a single year.

Backed by over 30 years of accumulated metalworking fluid technology and expertise in Gimhae, Gyeongnam, Dyna Solution Co., Ltd. delivers premium synthetic EDM fluid solutions perfectly optimized for South Korea’s mold manufacturing floors. If you are struggling with frequent fire hazards, sluggish machining speeds, and severe odors, now is the time to fundamentally transform your factory’s operations with Dyna Solution’s high-performance synthetic lineup.
