The smartphones we hold and use every day are not simply an assembly of cutting-edge software. Looking inside, they represent the “essence of precision manufacturing,” where microscopic metal components operate tightly interlocked, allowing not even a 0.1mm margin of error.

In the process of stamping out such small and intricate parts with high-speed presses thousands of times per minute, the key factor that dictates component quality and die lifespan is precision punching oil (stamping oil). We provide a detailed analysis of the major components that determine a smartphone’s perfection and the crucial role punching oil plays in their manufacturing processes.

1. The Blood Vessels of the Smartphone, ‘Ultra-Micro Connectors and Terminals’ Dozens of connectors are situated on a smartphone’s motherboard, linking the display, camera, speakers, and more. The pins inside these connectors serve as the core pathways for transmitting electrical current.

• Processing Difficulty: Connector pins primarily use highly conductive copper alloys. Since they are extremely small and densely spaced, even the slightest deformation during processing can lead to assembly defects.
• Key Role of Punching Oil: High-performance punching oil instantly cools the frictional heat generated during pin machining to maintain dimensional accuracy. Furthermore, it contains special additives that prevent the oxidation and discoloration characteristic of copper materials, maintaining an optimal surface condition until the plating process to maximize electrical signal transmission.

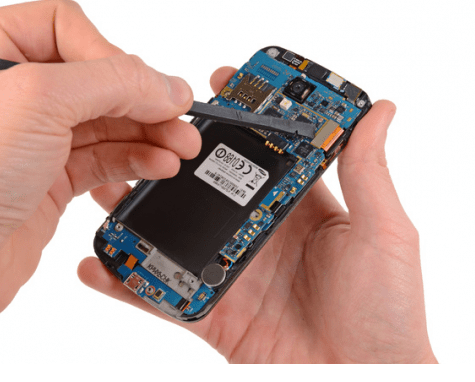

2. The Shield Against External Shock and Noise, ‘Shield Cans’ Core chipsets inside a smartphone must be protected from external electromagnetic interference (EMI). The thin metal covers that enclose these chipsets for this purpose are called shield cans.

• Processing Difficulty: Shield cans are mainly manufactured from thin stainless steel (SUS) sheets. Due to the hard nature of the material, the cutting edges of the die can easily become dull during processing.
• Key Role of Punching Oil: Punching oils formulated with extreme-pressure (EP) additives specialized for stainless steel processing form a robust lubricating film between the die and the material. This dramatically reduces die wear, extending its lifespan, while also suppressing the formation of rough burrs on the component edges to ensure perfect adhesion.

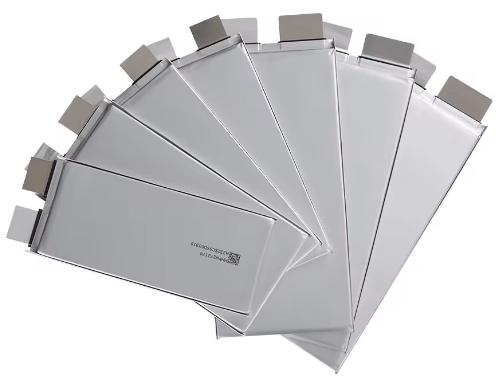

3. The Pathway of Energy, ‘Battery Lead Tabs’ Lead tabs, which transmit the energy of lithium-ion batteries to the circuit, are components directly linked to safety.

• Processing Difficulty: Extreme surface cleanliness is required, as they must not react with internal battery materials. If oil residues remain after processing, it can cause battery defects.
• Key Role of Punching Oil: This is where highly volatile (vanishing) punching oil shines. It provides sufficient lubrication during processing and then evaporates into the air immediately afterward, leaving no residue. This eliminates the need for a separate cleaning process, reducing production costs and enhancing the product’s chemical reliability.

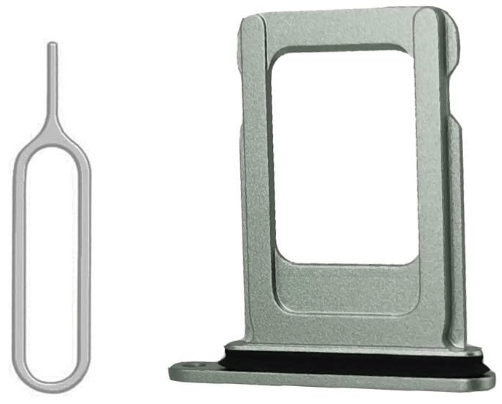

4. The Aesthetics of the Exterior, ‘SIM Trays and Button Frames’ For exterior metal components that users touch and see, such as mobile phone SIM trays and button frames, aesthetics are just as important as functionality.

• Processing Difficulty: Aluminum and titanium are commonly used materials, and they undergo anodizing (anodic oxidation) or painting processes after machining.
• Key Role of Punching Oil: Precision punching oil fundamentally prevents microscopic scratches on the metal surface during processing. Furthermore, it is designed to be highly responsive to cleaning agents used in post-processing, acting as a premium base that helps plating layers adhere firmly without lifting.

💡 Electronic Component Manufacturing Competitiveness Stems from ‘Dedicated Punching Oils’

As the miniaturization and high performance of smartphone components accelerate, conventional industrial fluids inevitably reach their limits. Precision punching oils dedicated to electronic components offer the following differentiated values:

• Ultra-gap Precision: Stability with no oil film breakdown even in the processing of ultra-thin sheets under 0.1mm.
• Process Efficiency: Dramatic reduction in lead times thanks to wash-free and fast-drying properties.
• Environmental and Regulatory Compliance: Securing export competitiveness by complying with global hazardous substance regulations such as RoHS.

Ultimately, the best smartphones are perfected by the technology of a single drop of punching oil that protects the die and enhances the value of materials behind the scenes. If you are struggling with microscopic quality issues in your process, please contact us at Dyna Solution to check the suitability of the fluid you are currently using today.

Dyna Solution Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Along with the rapid growth of the electric vehicle (EV) and energy storage system (ESS) markets, secondary battery manufacturing processes are becoming more sophisticated by the day. Just as important as the chemical technologies that increase battery capacity and charging speeds is the “precision machining technology” that guarantees yield and safety. ​ Among these processes, punching oil (also known as stamping fluid), which is essential for forming battery casings and core components, is the hidden protagonist that determines the final perfection of the battery. In today’s blog, we will take a closer look at the core role of punching oil in the secondary battery manufacturing process and the criteria for selecting the right product.​

1. The Secondary Battery Process: Why is “Special” Punching Oil Needed?

​ Unlike general industrial press machining, secondary battery (especially lithium-ion battery) manufacturing lines are extremely sensitive to foreign substances and moisture. While effectively controlling the heat and friction generated when cutting and forming metals, the punching oil must not adversely affect the chemical reactions inside the battery. ​ ​

2. Three Core Conditions of Punching Oil for Next-Generation Batteries

​ For flawless battery production, punching oil must pass the following strict criteria: ​

• ① Perfect Volatility and Ultra-Low Residue This is the most crucial factor. If oil remains on the metal surface after machining, an additional cleaning process is required, which lengthens lead times. Furthermore, residue can react with the electrolyte, causing fires or performance degradation. Recently, fast-drying (volatile) punching oils that do not require a separate degreasing process have become the industry standard. ​
• ② Excellent Cooling and Extreme Pressure (EP) Properties As battery components become smaller and thinner, the stress applied to the press die increases significantly. Oils containing excellent extreme pressure additives quickly control the high heat generated during machining and extend the lifespan of the die, thereby reducing downtime in continuous production lines. ​
• ③ Prevention of Discoloration and Corrosion in Non-Ferrous Metals Due to the nature of secondary batteries, which primarily utilize non-ferrous metals like aluminum and copper, a special anti-rust design must be applied to the oil to prevent oxidation and discoloration. ​

3. Key Processes Using Punching Oil in the Battery Industry

​ 1) Precision Punching of Lead Tabs

Lead tabs are thin metal terminals made of aluminum and copper that connect the electricity from the cathode and anode to the outside.

Role of Punching Oil: It prevents thin metal plates from sticking to the die (stick-slip phenomenon) during ultra-high-speed continuous press operations. Its most critical role is to smoothly treat the punched cut surface to suppress the generation of burrs (microscopic protrusions), thereby fundamentally eliminating the risk of internal short circuits caused by damage to the battery separator. ​

2) Machining of Busbars and Module Connection Components

A busbar is a core component that integrates and distributes power by connecting dozens to hundreds of battery cells together. They are primarily manufactured by punching and bending flat plates of copper (Cu) or aluminum (Al).

Role of Punching Oil: It controls the immense frictional heat generated when punching copper or aluminum at high speeds. Since burrs or scratches on the cut surface can directly lead to power loss and fire hazards, high-performance punching oil is essential to provide excellent extreme pressure properties and improve the surface roughness of the cut.

3) CID (Current Interrupt Device) and Safety Vents

These are the ultimate safety mechanisms that prevent explosions by venting gas or physically interrupting the current when the internal pressure of cylindrical and prismatic batteries rises to dangerous levels.

Role of Punching Oil: These components require engraving fine fracture lines (V-Notches) or performing ultra-precision punching on thin metals. Because dimensional tolerances must be controlled at the micrometer (㎛) level, ultra-low residue, high-precision lubricants that leave no debris on the die are absolutely required. ​

​High-Precision Punching Solutions Proposed by Dyna Solution

​ In an era where the performance of secondary batteries is being standardized at a higher level, the core of competitiveness now lies in the integrity of the manufacturing process. A single, invisible thin lubricating film withstands tens of thousands of press cycles and ensures the safety of the battery. ​ At Dyna, having accumulated extensive know-how in the field of precision punching, we are dedicating ourselves to researching next-generation lubrication solutions optimized for secondary battery machining. ​ In the highly advanced secondary battery ecosystem, we will propose the optimal solutions to elevate your process efficiency and product reliability to the next level.

Dyna Solution Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Recently, the key themes in the home appliance, mobile, and semiconductor industries are undoubtedly miniaturization and high integration. In precision machining sites that handle ultra-thin materials under 0.1mm, there is a factor just as vital as the machine’s performance: Stamping Oil. This “invisible player” controls the friction between the mold and the material.

Today, we will take a deep dive into why stamping oil is essential in the electronics and semiconductor industries and the core functions it performs.

---

1. Core Functions: A Shield Protecting Molds and Materials

Electronics component machining occurs at high speeds within extremely narrow clearances. In this environment, stamping oil plays three critical roles that determine process stability:

• Formation of Extreme Pressure (EP) Lubrication Film When machining ultra-thin sheets (under 0.1mm), immense pressure is concentrated between the punch and the material. High-performance stamping oil forms a robust EP Film that does not break down even under extreme conditions, preventing mold wear and protecting the material from scratches.
• Cooling and Prevention of Thermal Deformation Frictional heat generated during high-speed repetitive tasks can reduce mold hardness and cause minute dimensional changes in the material. Stamping oil quickly absorbs and dissipates this heat to maintain consistent machining precision.
• Chip Evacuation and Cleaning Fine metal dust (chips) remaining in the mold can directly cause product defects. Stamping oil with excellent fluidity immediately flushes out these micro-chips, keeping the interior of the mold clean.

---

2. Why Is It More Critical in the Ultra-Precision Industry?

Unlike general metalworking, machining electronics and semiconductor parts is highly demanding due to its linkage with downstream processes.

• ① Maintaining Precision of Micro-Terminals For components like connectors or lead frames, even a tiny dimensional error can cause fatal issues in electrical signal transmission. Inconsistent lubrication leads to uneven surface roughness, instantly turning expensive parts into scrap.
• ② Efficiency in Cleaning (Vanishing Oil) Recently, Vanishing Oil (Volatile Stamping Oil) has gained popularity as it allows for the omission or simplification of the cleaning process. The residue evaporates on its own after machining, shortening lead times and preventing contamination issues in subsequent plating or assembly stages.
• ③ Overcoming the Limits of Ultra-Thin Sheet Machining Thin sheets under 0.1mm can easily deform or twist even with minor frictional resistance. Specialized stamping oils for thin sheets feature low viscosity and high permeability, spreading quickly into the complex corners of the mold to ensure stable processing.

---

3. Key Application Examples

• Semiconductor Packaging & Mounting Components
  • Lead Frames: A core component connecting semiconductor chips to external circuits; high-performance stamping oil is used for precision machining around 0.1mm.
  • Substrate Masks for Solder Ball Attachment: Ensures the precision of the micro-hole punching process in semiconductor packaging.

• Connectivity (Connectors & Terminals)
  • Micro Connectors: Machining fine pins for FPCB connections inside smartphones and tablets.
  • Automotive Electrical Terminals: Key terminals for transmitting high currents and signals in EVs and autonomous vehicles.

• EMI Shielding & Protective Parts
  • Shield Cans: Machining thin metal covers to block electromagnetic waves generated by chipsets on PCBs.
  • Smartphone Brackets: Ultra-precision structures that form the internal skeleton of devices and secure components.

---

4. Expected Benefits of Selecting High-Quality Stamping Oil

Simply choosing the right stamping oil can lead to tangible results on the manufacturing floor:

1. Extended Mold Life: Significantly reduces maintenance costs by delaying the replacement cycle of expensive precision molds.
2. Increased Productivity: Maximizes equipment utilization by suppressing heat and noise during high-speed machining.
3. Reduced Defect Rates: Improves surface finish and suppresses burr formation, leading to higher pass rates in final inspections.

---

Conclusion

As electronics and semiconductor technologies advance, the importance of underlying materials, components, and equipment (MCE) technology continues to grow. Stamping oil is more than just a consumable; it is a concentration of core technology that determines the perfection of ultra-precision machining.

Selecting a high-performance stamping oil optimized for your specific process is the first step toward producing world-class, high-quality electronic components.

We Dyna Solution continuously researches stamping oils perfectly suited for next-generation precision processes. If you are looking for a stamping oil that balances precision, cooling, and cleaning properties, experience the difference with Dyna Solution’s products.

Dyna Solution Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

As manufacturing precision continues to reach new heights, Stamping/Punching Oil has evolved beyond a simple consumable. It is now a strategic element that determines both Product Quality and Process Cost.

While oil selection in the past was limited to reducing die friction, in today’s era of ultra-precision machining, it must be viewed as a process partner that dictates quality design and production line economics.

In environments where high-speed stamping occurs thousands of times per minute, selecting the wrong oil can lead to catastrophic risks—generating tens of thousands of defects (scrap) in just a few minutes of error. In short, stamping oil strategy is a critical decision-making factor that directly impacts a company’s manufacturing competitiveness and overall business impact.

1. Electronics, Semiconductors & Secondary Batteries: “The Battleground for Zero-Residue Technology”

In these industries, microscopic residues are an “absolute risk” that cause fatal defects in downstream processes such as plating, assembly, and electrolyte injection. Therefore, achieving Zero-Residue characteristics is the primary principle for ensuring manufacturing reliability.

• Semiconductor Lead Frames: Requires stamping ultra-thin copper alloys (under 0.1mm) thousands of times per minute. High-performance, low-viscosity oils that evaporate quickly after processing while minimizing die wear are essential.
• Secondary Battery Cases: When processing aluminum (anode) and copper (cathode) foils, preventing tears is vital. Controlling ionic cleanliness to prevent internal cell contamination is the key to quality.
• Key Value: Adopting “No-clean, High-volatility Stamping Oils” that eliminate or simplify cleaning processes is synonymous with productivity. This provides an overwhelming advantage in Total Cost of Ownership (TCO) by removing the CAPEX and OPEX associated with operating cleaning lines.

2. Automotive & EV: Optimizing Material Diversification and Mass Production Stability

The transition to Electric Vehicles (EVs) has triggered an increase in non-ferrous metals to reduce vehicle weight. Technical advancement in stamping oils is required to manage the physical loads generated in harsh mass-production environments.

• EV Motors and Structural Components: The proportion of aluminum alloys is rising for lightweighting. Extreme Pressure (EP) stability is crucial to prevent material scratches while managing the heat generated during the processing of high-strength steel sheets.
• Key Value: In the automotive industry, processing stability goes beyond reducing defect rates; it is a business strategy to secure cost competitiveness by protecting expensive die assets and minimizing production downtime.

3. Home Appliances & Electrical Components: Film Control Technology for Maximum Energy Efficiency

In the appliance sector, micro-film control technology—which directly relates to energy efficiency ratings—is the new benchmark for competitiveness.

• Motor Cores (Electrical Steel): In the lamination process where hundreds of steel sheets are stacked, inconsistent or thick oil films cause stacking errors (reduced Stacking Factor). This leads to Magnetic Flux Leakage during motor operation, increasing energy loss. Applying “Ultra-thin Film Control Technology” to improve lamination precision is a core technical factor in upgrading a motor’s Efficiency Class.
• Air Conditioner Fins: Preventing die contamination and ensuring fast volatility during high-volume aluminum processing are direct drivers for maximizing productivity per unit of time by increasing Strokes Per Minute (SPM).
• Key Value: Residue minimization technology allows for the perfect realization of physical design specifications, simultaneously achieving quality standardization and energy competitiveness.

4. Aerospace: High-Difficulty Machining Solutions for Extreme Reliability

The aerospace industry combines the difficulty of processing high-value materials (Titanium, Inconel) with the absolute value of aviation safety. Here, even a 0.1% machining error or a microscopic surface defect is unacceptable.

• Engines and Propulsion Systems: Heat-resistant superalloys like Titanium and Inconel cause extreme die wear. High-performance Extreme Pressure (EP) formulation technology is a critical variable that determines success.
• Airframe Structures (7075 Aluminum): When punching tens of thousands of rivet holes, the Surface Finish is directly linked to the aircraft’s Fatigue Life. Micro-scratches act as Stress Risers, which can cause structural cracks over time. The role of stamping oil in suppressing heat and forming smooth cross-sections is essentially the foundation of aviation safety.
• Key Value: Adopting solutions that prevent material transformation and maintain superior surface quality is a mandatory choice to guarantee aerospace safety.

Is Your Stamping Process Optimized?

Most problems occurring in the stamping process stem from selecting oils without considering “industry-specific characteristics.”

Dyna Solution provides more than just oil; we provide customized lubrication solutions optimized for your specific materials and equipment environment.

If you are considering the introduction of stamping oils for 0.1mm ultra-thin processing or precision machining, we invite you to experience the advanced technological prowess of Dyna Solution firsthand.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Technical Spotlight: Precision Stamping Oil for Ultra-Thin Components

From smartphones and wearables to semiconductors for electric vehicles (EVs), electronic components are becoming smaller and thinner every day. Today’s manufacturing floors require extreme precision, capable of punching ultra-thin plates (under 0.1mm) at speeds of thousands of strokes per minute.

In these ultra-precision processes, the “invisible hero” that determines productivity and reduces defect rates is Precision Punching Oil. Here are the core technical reasons why you should choose specialized lubricants designed specifically for electronic components.

1. Oil Film Control Technology: Breaking the 0.1mm Limit

In ultra-thin stamping, the clearance between the die and the material is extremely narrow. Conventional punching oils often fail to withstand the intense pressure and frictional heat generated during high-speed operations, leading to oil film rupture.

• The Technical Core: It is essential to maintain low viscosity while simultaneously forming a powerful Extreme Pressure (EP) Film that adheres strongly to the metal surface.
• Expected Benefits: Maintaining a stable oil film drastically reduces wear on the mold’s cutting edge. This results in smooth cross-sections and minimizes burr formation, ensuring superior part quality.

2. A Paradoxical Blend: Low Viscosity and High Performance

Selecting the right viscosity is one of the most challenging aspects of electronic component manufacturing.

• Why Low Viscosity? If excessive oil residue remains after processing, tiny components tend to stick together, or the subsequent cleaning process becomes unnecessarily long. Therefore, low-viscosity lubricants that flow as light as water are highly preferred.
• The Solution: Generally, lower viscosity leads to decreased lubricity. However, high-performance precision punching oils utilize specialized synthetic base oils to minimize viscosity while maximizing lubrication. This ensures consistent quality even in ultra-high-speed press operations.

3. Ensuring Electrical Integrity: Conductivity and Anti-Tarnish

The primary materials for electronic parts—such as copper alloys and aluminum—are extremely sensitive to their environment. If the punching oil contains incompatible chemical agents, the material surface may appear fine initially but can oxidize or turn black over time.

• Non-Staining Additives: Our precision punching oils include non-ferrous corrosion inhibitors specifically tailored to material properties.
• The Impact: By preventing surface degradation, these additives improve the adhesion and reliability of post-processing steps such as plating or soldering, ultimately securing the long-term electrical reliability of the final product.

마지막 세션까지 전문적인 기술 용어와 마케팅 감각을 살려 영문으로 번역해 드립니다. 특히 ‘휘발성 유제’를 ‘Vanishing Oil’ 또는 **’Evaporative Lubricant’**로 표현하여 산업 현장에서의 가독성을 높였습니다.

---

4. Process Innovation: ‘Vanishing Oils’ for Wash-Free Manufacturing

Recently, “process simplification” and “eco-friendliness” have become the biggest buzzwords in manufacturing. While many facilities still operate large-scale cleaning equipment to remove residual oil, high-performance evaporative (vanishing) punching oils change the game.

• The Wash-Free Solution: These lubricants evaporate cleanly into the air after processing, leaving virtually no residue behind. This serves as a powerful competitive edge, allowing manufacturers to skip or significantly reduce the cleaning stage, thereby cutting electricity bills, solvent costs, and waste disposal expenses all at once.

---

💡 Conclusion: Precision Punching Oil as a Core Strategy

In the world of ultra-thin electronic component manufacturing, precision punching oil is more than just a lubricant—it is a strategic asset that hits two birds with one stone: “Mold Protection” and “Process Innovation.”

In extreme processes involving materials under 0.1mm, micro-frictional heat and oil film rupture are the primary culprits that shorten mold life and degrade electrical reliability. High-performance precision oils prevent these issues at the source with a robust Extreme Pressure (EP) film, maintaining flawless quality.

Furthermore, adopting volatile precision lubricants eliminates cumbersome cleaning steps, drastically reducing manufacturing costs (utilities, waste management) and resolving production bottlenecks.

As electronic components continue to shrink and processing technologies advance, the role of punching oil—an essential auxiliary material—becomes increasingly vital.

Are you looking for the next generation of precision punching oil?

Contact us today. We will provide the optimal solution tailored specifically to your manufacturing process.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Technical Challenges of Cleaning Ultra-Thin and Ultra-Precision Components

Why Do Conventional Cleaning Methods Reach Their Limits?

The electronic components industry is evolving rapidly.

With the expansion of AI, high-speed communications, electric vehicles, and high-current systems, electronic terminals and connection components are becoming thinner, smaller, and more precise.

Ultra-thin materials below 0.1 mm, high-speed continuous stamping, and tolerance control at the micron level are becoming standard manufacturing conditions.

In such an environment, cleaning is no longer a simple contamination removal step.

Cleaning ultra-thin and ultra-precision components requires an entirely different level of technology.

1️⃣ Why Is Cleaning Ultra-Thin Components More Difficult?

① Extremely Low Mechanical Rigidity

The thinner the component, the easier it deforms.

• High-pressure spray cleaning → risk of deformation
• Excessive ultrasonic power → micro-deformation
• Strong fluid impact → bending

If conventional industrial cleaning conditions are applied directly, the dimensional accuracy of the component itself can be compromised.

② High Surface Reactivity

Ultra-thin metals have a high surface-to-volume ratio, which means higher surface reactivity.

This can lead to:

• Excessive cleaning power → over-activation of the surface
• Accelerated micro-oxidation
• Non-uniform reactions prior to plating

The assumption that “stronger cleaning is better” can actually produce negative results.

③ Amplified Impact of Residues

As thickness decreases and cross-sectional area becomes smaller, the impact of microscopic residues becomes significantly more critical.

Potential issues include:

• Increased contact resistance
• Poor plating adhesion
• Soldering defects
• Reduced long-term reliability

For connectors and terminals in particular, surface condition directly determines electrical performance.

Even a single microscopic residue particle can affect product lifetime.

2️⃣ Complex Contamination in Ultra-Precision Stamping Processes

In ultra-precision stamping processes, multiple contaminants typically coexist:

• High-viscosity stamping lubricants
• Die wear particles
• Micro metal particles
• Oxidation by-products

These organic and inorganic mixed contaminants are difficult to remove completely using a single-solvent-based cleaning system.

If cleaning power is too strong:

• Microscopic damage to metal surfaces
• Particle re-adhesion
• Surface energy imbalance

If cleaning power is too weak:

• Oil residue remains
• Plating defects occur
• Contact resistance increases

Achieving the right balance is critical.

3️⃣ Constraints of High-Speed Continuous Production Environments

Ultra-thin electronic components are typically produced in high-speed continuous manufacturing lines.

These lines involve:

• Short tact times
• Integration with automated cleaning systems
• Immediate drying after cleaning
• Direct connection to plating, heat treatment, and assembly processes

Therefore, a cleaning agent must offer more than just strong cleaning ability. It must also provide:

• Stable evaporation rate
• Low mist generation
• Uniform drying characteristics
• Compatibility with downstream processes

4️⃣ Limitations of Conventional Industrial Cleaning Methods

Conventional industrial cleaning agents typically emphasize:

• Strong solvency
• Fast evaporation
• Low cost

However, in ultra-precision electronic component cleaning, more critical factors include:

• Prevention of particle re-adhesion
• Stability of the metal surface
• Low residue design
• Compatibility with plating pretreatment
• Operator safety

Cleaning strength alone cannot solve the problem.

5️⃣ The Key to Ultra-Thin Component Cleaning: Surface Control Technology

The essence of ultra-precision cleaning is not simply removing contamination.

It is about:

✔ Removing contaminants without damaging the surface
✔ Leaving no residue
✔ Ensuring uniform surface reactivity for downstream processes
✔ Securing electrical reliability

In other words, cleaning is a surface engineering process that prepares the material for the next manufacturing step.

6️⃣ Why Next-Generation Precision Cleaning Agents Are Required

Cleaning ultra-thin and ultra-precision components requires the following properties:

• Selective solvency for high-viscosity lubricants
• Particle re-adhesion prevention design
• Metal compatibility (Cu, Brass, Ni, SUS, etc.)
• Low-residue characteristics
• Compatibility with automated production lines

The key is not aggressive chemistry, but a precisely engineered balance of physical and chemical properties.

Conclusion

As electronic components continue to become smaller and thinner, the technical difficulty of cleaning processes is increasing exponentially in both mechanical and chemical aspects.

Cleaning defects are no longer just cosmetic issues. They can lead to:

• Reduced plating quality
• Increased contact resistance
• Large-scale product recalls

Cleaning is no longer a secondary process.
It has become a core technology that determines product quality and competitiveness.

For manufacturers working with ultra-thin and ultra-precision components, now is the time to rethink cleaning processes from a precision surface engineering perspective, rather than relying on conventional industrial cleaning solutions.

Looking for a next-generation precision cleaning solution?

If you share the materials and manufacturing processes used in your products, we can recommend a next-generation precision cleaning solution optimized for your application.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

As smartphones, secondary batteries, and semiconductor components continue to become smaller and thinner, the challenges faced on press processing floors are also intensifying. In extreme environments where ultra-thin materials—less than 0.1 mm thick—are stamped more than 1,000 times per minute, conventional punching oils can no longer withstand the demands.

In the era of technological super-gap competition, the need for next-generation precision punching oils used in high-precision electronic components is rapidly increasing.

Today, we will explore the key technical challenges in electronic component processing and the “next-generation precision punching oil” designed to solve them.

1. Three Major Technical Challenges in Electronic Component Processing

As ultra-thin materials and high-speed press operations become standard, conventional punching oils face the following limitations:

① Boundary Lubrication Issues with Ultra-Thin Materials

Ultra-thin materials with thicknesses ranging from 0.05 to 0.3 mm have extremely shallow deformation zones. In such cases, the oil film thickness can become thinner than the surface roughness of the material, leading to direct contact between the die and the workpiece.

Result: Adhesive wear and micro welding occur → Conventional viscosity design is insufficient to protect the die.

② Thermal–Viscosity Instability in High-Speed Pressing (Over 1,000 spm)

In high-speed operations exceeding 1,000 strokes per minute, instantaneous contact temperatures rise sharply.

Result: Rapid viscosity drop and accelerated oxidation → Lubrication imbalance → Increased micro burr formation and die wear.

③ Critical Residue Formation Mechanism

In electronic components, residue is not merely a cosmetic issue. High-temperature oxidation by-products or thermally decomposed additives can leave harmful residues that are critical in downstream processes.

Result: Increased cleaning time, ionic contamination, plating defects, and bonding failures—ultimately leading to serious quality incidents.

2. Four Core Solutions of Next-Generation Precision Punching Oil

To overcome these challenges, next-generation punching oils incorporate advanced technologies such as:

• Enhanced Extreme Pressure (EP) Performance:
  Minimizes die wear and prevents micro-cracking even in boundary lubrication conditions.
• Ultra-Low Residue Design:
  Reduces post-evaporation residues to near-zero, shortening cleaning processes and fundamentally blocking contamination risks in electronic components.
• Improved Thermal Stability:
  Maintains viscosity stability even at elevated temperatures, ensuring consistent dimensional precision during high-speed operations.
• Excellent Cleanability & Degreasing Performance:
  Easily removable with IPA or hydrocarbon-based cleaners, significantly reducing overall process costs.

3. Differentiation from Conventional Products

Next-generation precision punching oil for electronic components demonstrates performance beyond the limitations of conventional products.

Category	Conventional Punching Oil	Next-Generation Precision Punching Oil
Lubrication Performance	General lubrication level	Enhanced EP + Specialized wear/welding suppression
Residue Characteristics	Moderate (thermal decomposition residues present)	Ultra-low residue design (maximized cleanability)
Thermal Stability	Viscosity drops at elevated temperatures	Maintains high-temperature viscosity (improved dimensional precision)
Primary Application	General press processing	Ultra-precision & high-speed (1,000 spm↑) operations

4. Key Application Fields

This technology is essential in advanced industries where quality stability directly determines competitiveness:

• Semiconductors: Ultra-precision lead frames
• IT Devices: Smartphone connector terminals, EMI shielding components
• Energy: Secondary battery cans and cap components
• Material Processing: Precision processing of ultra-thin SUS, Cu (copper), and Al (aluminum) alloys

Conclusion

As electronic components become smaller, the importance of foundational materials such as punching oil becomes even greater.

Are you currently searching for a next-generation precision punching oil?

If you share the material type and stamping speed (spm) of your production line, we will be pleased to recommend a next-generation punching oil lineup optimized for your specific process conditions.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

Why Is “Precision Cleaning” Now Essential for Electronic Components?

In the electronics industry, the stamping process is a core technology for mass production.

Lead frames, connectors, terminals, springs, EMI shielding components, and most electrical contact parts are manufactured through stamping.

However, one critical factor in this process is often underestimated:

Cleaning.

In many production sites, cleaning is still regarded as a simple “contaminant removal step.”

But in today’s AI-driven era—where ultra-precision and high reliability are mandatory—cleaning is no longer a secondary process.

Cleaning Quality = Electrical Performance + Plating Quality + Long-Term Reliability

The role of cleaning must now fundamentally change.

Why Do Electronic Components Require “Precision Cleaners” Instead of “General Cleaners”?

1️⃣ The Complex Nature of Surface Contamination

During the stamping of electronic components, multiple types of contamination occur simultaneously:

• Stamping lubricants
• Die wear debris
• Fine metallic particles
• Oxidation by-products

These contaminants are not simply a matter of being “dirty.” They can lead to serious quality issues such as:

• Poor plating adhesion
• Increased contact resistance
• Soldering defects
• Coating delamination
• Reduced long-term reliability

For connectors and terminals in particular, surface condition directly determines electrical performance.
Even microscopic residue can affect product lifespan and reliability.

2️⃣ The Unique Environment of High-Speed, Mass Production

High-precision electronic components are produced in high-speed continuous processes.

• Short takt times
• Integration with automated production lines
• Immediate drying after cleaning
• Direct linkage to plating, heat treatment, and assembly processes

Therefore, a cleaner must offer more than “strong cleaning power.” It must provide process-friendly properties such as:

• Controlled and stable evaporation rate
• Low mist generation
• Compatibility with automated equipment
• Suitability for downstream processes

General industrial cleaners often struggle to meet these requirements.

3️⃣ The Reality of Complex Contamination

Stamping environments for electronic components involve both organic and inorganic contaminants:

• Stamping lubricants
• Fine metal dust
• Oxide layers
• Mixed foreign substances

A single solvent system cannot perfectly address all of these challenges.

Simply increasing cleaning strength may lead to surface damage or re-adhesion of particles.

Limitations of Conventional Cleaning Methods

General industrial cleaners or degreasers typically emphasize:

• Strong solvency
• Fast evaporation
• Low cost

However, in electronic component manufacturing, the following factors are more critical:

• Prevention of fine particle re-adhesion
• Preservation of metal surface stability
• Suitability for plating and bonding pretreatment
• Worker safety
• Equipment protection

“Stronger” chemistry alone cannot resolve plating defects or contact resistance issues.

Dyna’s Next-Generation Precision Cleaner for Electronic Components

The core philosophy behind our next-generation cleaner is clear:

“Cleaning is not just about removing contamination—it is about preparing the surface for the next process.”

Based on a high-purity synthetic hydrocarbon platform, we have engineered physical properties specifically optimized for electronic component cleaning applications.

Six Key Features of Dyna’s Next-Generation Cleaner

1️⃣ Safe Removal of Residual Lubricants

Designed to rapidly dissolve high-viscosity lubricants without over-activating the metal surface.

→ Ensures plating stability

2️⃣ Suppression of Fine Particle Re-adhesion

Prevents detached metal particles from reattaching to the surface during cleaning.

→ Reduced plating defects
→ Improved contact resistance stability

3️⃣ Low-Residue Design

Minimizes films, stains, and organic residues after cleaning.

• Enhanced plating adhesion
• Improved contact reliability
• Reduced downstream defects

4️⃣ Metal Compatibility

Minimized risk of discoloration or corrosion for key electronic component materials:

• Copper
• Brass
• Nickel
• Stainless steel

5️⃣ Process Compatibility

Applicable to various cleaning methods:

• Immersion cleaning
• Ultrasonic cleaning
• Spray cleaning
• Continuous automated cleaning systems

Engineered for stable evaporation and low mist generation, contributing to improved working environments.

Why Is Cleaning Becoming Even More Critical Now?

The electronic components market is evolving rapidly:

• Increase in high-current and high-speed signal terminals
• Expansion of automotive electronics
• Stricter plating quality standards
• Growing demand for eco-friendly and chlorine-free cleaning

Cleaning defects are no longer cosmetic issues. They directly lead to:

→ Electrical performance failures
→ Customer claims
→ Long-term reliability risks

Conclusion

Cleaning in electronic component manufacturing is no longer a secondary process.

It is a core technology required to:

✔ Secure plating quality
✔ Ensure stable contact resistance
✔ Achieve long-term reliability
✔ Support automated production environments

Next-generation cleaning solutions must not rely on aggressive chemistry.
They must be precise, process-friendly, and environmentally responsible.

If you are seeking to stabilize the quality of your electronic components, Dyna’s precision cleaning solution can help establish a new standard.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

In heat treatment processes, we often hear statements like:

“This steel grade needs to be quenched quickly,” or
“If this is cooled too rapidly, it will crack.”

However, the key factor that truly determines heat treatment quality is not simply the cooling rate itself,
but the pattern of cooling—namely, the cooling curve of the quenching oil.

Heat treatment quality is determined not by how fast the material is cooled, but by how it is cooled.

Even when heat treatment conditions appear to be the same on the surface, differences in hardness, microstructure, distortion, or crack formation often originate from differences in the cooling curve of the quenching oil.

What Is a Cooling Curve?

A cooling curve is a graph that shows how the temperature of a metal decreases over time when a metal heated to a high temperature is immersed in quenching oil during heat treatment.
This curve is not a single straight line; it is typically composed of the following three cooling stages.

① Vapor Phase

In this stage, cooling proceeds slowly through radiation and conduction, and a vapor blanket forms on the metal surface immediately upon immersion.
Heat transfer is most unstable during this phase, and if this stage is prolonged, cooling non-uniformity may occur, potentially leading to the formation of soft and undesirable pearlite instead of martensite.

② Boiling Phase

This is the stage in which rapid heat removal occurs as the vapor blanket collapses, and it is the most critical phase for hardness development.
If cooling is excessively rapid during this stage, the risk of crack formation may increase.

It is the key zone where intense heat transfer takes place, and the maximum cooling rate appears during the formation and detachment of bubbles.
This stage is also decisive for forming a hard martensitic microstructure, making precise control of the cooling rate essential.

③ Convection Phase

Cooling proceeds via natural convection or forced convection, and the cooling rate is influenced by viscosity and agitation conditions (flow conditions).

In this stage, the temperature gradually decreases, resulting in gentle cooling, and this is the phase that affects product deformation and the formation of residual stresses.

In summary, the three stages of the cooling curve are as follows:

Stage	Cooling rate	Primary objective
Vapor Blanket	Slow	Initial quenching stabilization
Boiling Stage	Maximum (critical zone)	Martensite formation
Convection Stage	Relatively slow	Final cooling control

For each heat treatment oil, the proportions of these three stages and the transition speeds between them differ, and this difference is precisely what is referred to as the difference in cooling curves.

Why Is the Cooling Curve Important?

1. Hardness and Microstructure Are Determined by the Cooling Curve

Microstructural transformations in steel—such as martensite and bainite—depend on how quickly and stably specific temperature ranges are passed through.

• Cooling too slowly → Failure to achieve target hardness
• Cooling too rapidly → Excessive martensite formation, increased brittleness
• Large cooling variations → Non-uniform hardness

In other words, what matters is not a “fast oil,” but an oil with an appropriately controlled cooling curve.

2. Deformation and Warping Are Caused by Cooling Imbalance

Distortion issues, which are common in large or geometrically complex parts, are also closely related to the cooling curve.

• An unstable vapor blanket stage
• Large differences in local cooling rates
• Resulting thermal stress imbalance → Deformation

👉 Heat treatment oils with stable vapor blanket breakdown characteristics are advantageous for reducing distortion.

3. Cracks Can Occur Even with “Excessively Good” Cooling

“We achieved the required hardness, but cracks occurred.”

In many such cases, the answer can be found by examining the cooling curve.

• Excessively rapid cooling during the boiling stage
• Abrupt temperature drops in specific temperature ranges
• Internal stresses exceeding material tolerance → Cracking

👉 Even oils with high cooling performance can cause defects if the cooling curve is too aggressive.

4. Why Results Differ Under the Same Conditions

If results differ despite using the same equipment, steel grade, and process conditions, the cause is often the degradation state of the heat treatment oil.

• Oxidation → Changes in the cooling curve
• Sludge formation → Instability in the vapor blanket stage
• Viscosity change → Reduced cooling efficiency in the convection stage

In other words, as heat treatment oil ages, the cooling curve itself changes, making regular oil monitoring and analysis essential.

What Defines a Good Heat Treatment Oil?

A good heat treatment oil is not simply one that cools quickly.

It is an oil that:

• Has a short and stable vapor blanket stage
• Provides a controlled boiling stage
• Delivers uniform cooling performance during the convection stage

In short, a good heat treatment oil possesses an ideal cooling curve tailored to the process objective.

That is why, when selecting a heat treatment oil, cooling curve data must be reviewed alongside viscosity and flash point.

The Solution Proposed by DynaSolution

DynaSolution approaches heat treatment not as a simple matter of oil selection, but as a cooling curve design challenge.

Through cooling-curve-data-based analysis tailored to specific process conditions and material characteristics, we deliver stable and highly reproducible cooling performance across the vapor blanket, boiling, and convection stages.

A heat treatment oil defined not merely by “cooling performance,” but by a cooling curve optimized for the process—that is the standard DynaSolution pursues.

If you want to elevate your heat treatment quality to the next level, start by examining the cooling curve.

DynaSolution is ready to work with you to find the answer.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/

— Key Factors for Improving Machining Quality and Cost Efficiency —

In electrical discharge machining (EDM), electrode wear is an inevitable phenomenon, but it is also a controllable variable. Excessive electrode wear leads to reduced dimensional accuracy, increased correction work, longer machining time, and higher overall costs.
While many shops first review machining parameters or electrode materials, the selection of EDM fluid actually has a significant impact on electrode wear.

1. Why Does Electrode Wear Occur?

Electrode wear occurs when the electrode surface is eroded by the high-temperature, high-energy plasma generated during electrical discharge. In this process, the following factors play a decisive role in determining the wear rate:

• Concentration of discharge energy
• Stability of the discharge
• Efficiency of heat dissipation

The EDM fluid directly influences all three of these factors.

2. Stable Insulating Properties Reduce Electrode Wear

The most critical condition for reducing electrode wear is discharge stability. When an EDM fluid has inconsistent or degraded insulating properties, abnormal arcing or continuous discharges are more likely to occur, causing excessive heat to concentrate on the electrode.

An EDM fluid with stable insulating characteristics allows uniform discharges to occur only when needed, minimizing localized damage to the electrode surface.

Key Points

• Fluid with consistent dielectric breakdown voltage
• Fluid with minimal degradation of insulating performance over time

3. Choose EDM Fluids with High Thermal Stability

Electrode wear is not merely a discharge issue—it is also a thermal management issue. If an EDM fluid has low thermal stability, it decomposes rapidly at high temperatures, leading to an unstable discharge environment.

Synthetic EDM fluids generally offer superior thermal stability compared to mineral oil-based fluids, maintaining consistent discharge characteristics even during long machining cycles or high-energy operations. This reduces thermal stress on the electrode and contributes to lower wear rates.

4. Debris Removal Performance Directly Affects Wear Rate

If fine sludge generated during EDM remains between the electrode and the workpiece, secondary discharges or arcing can easily occur. This is one of the primary causes of accelerated electrode wear.

EDM fluids with appropriate viscosity and good flow characteristics effectively remove debris, keep the machining gap clean, and maintain a stable discharge environment.

Key Points

• Low-viscosity or high-fluidity fluids
• Fluids with excellent compatibility with filtration systems

5. Low-Carbon-Residue Fluids Protect the Electrode

Carbon residues formed during thermal decomposition of EDM fluids can adhere to the electrode surface, causing uneven distribution of discharge energy. This leads to localized over-discharge and accelerates electrode wear.

EDM fluids that generate minimal carbon residue help maintain uniform discharge marks and stabilize the condition of the electrode surface.

6. Consider Fluid Properties Based on Machining Conditions

Not all EDM fluids perform optimally under the same conditions.

• Micro-machining / precision molds → Focus on discharge stability and low residue
• High-speed machining / rough machining → Focus on cooling and debris removal performance

Selecting an EDM fluid that matches the machining purpose and energy conditions is essential for effective control of electrode wear.

Conclusion: Electrode Wear Is Determined by Fluid Selection

Reducing electrode wear is not simply a matter of lowering machining parameters. The most fundamental solution is choosing an EDM fluid that creates a stable discharge environment.

An EDM fluid with balanced insulating stability, thermal stability, and cleaning/debris removal performance not only reduces electrode wear but also improves machining quality and productivity.

If you are struggling with repeated corrections and defects caused by electrode wear,
consider reviewing your EDM fluid before replacing the electrode itself.

Dyna Co., Ltd.
Industrial Lubricant Solution
E-Mail : dyna@dynachem.co.kr
Web : dyna.co.kr/en/
